10x10s - EZ12 tool-less collapsible truss display system (KITS)

Pre-designed kit concepts. Use these kits as is, add some accessories, reconfigure them or start from scratch. With EZ12, it’s entirely up to you..

10x10's:

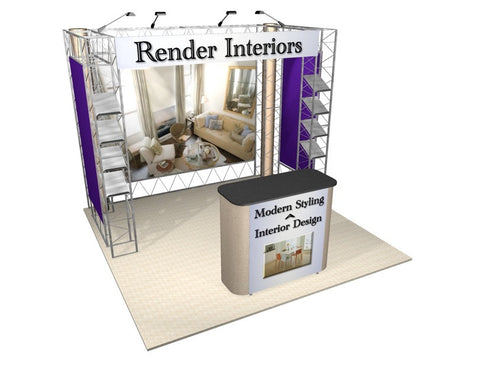

Jet

This 10 x 10 inline display supports a large mural, and has an overhead header for ID.

Jet retail price:

  • Truss with 3 cases - $4,723
  • est. weight - 300 pounds

Accessories

  • 200 watt halogen clamp-on lights - $138 each (4 included)
  • literature shelves - $35 each (8 shown)
  • laptop shelves - $120 each (0 shown)
  • vertical truss mount small LCD mounts - $150 each (0 shown)
  • hanging plasma mount - $350 each (0 shown)
  • Freestanding counter - $900 each (1 shown)

Standard graphic sizes:

  • Backwall Mural: (1) 93.5” x 70” high fabric with sintra strips top and bottom front.
  • Sidewall Murals: (2) 36” x 70” high fabric with sintra strips top and bottom front.
  • Straight header: 93.5” x 11.5” panel size, lexan with magnet on reverse perimeter.
  • Optional Counter Front: 33” x 37” panel size, lexan with hook velcro on reverse perimeter.

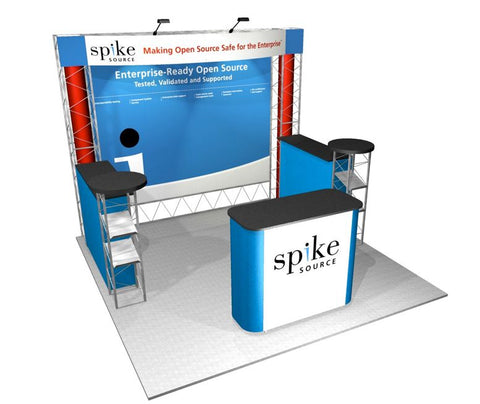

Opal

Large backwall mural, arc header and side counters, this 10 x 10 is clean and efficient.

Opal retail price:

  • truss with 3 cases - $5,312
  • est. weight 400 pounds

Accessories

  • 200 watt halogen clamp-on lights - $138 each (2 included)
  • literature shelves - $35 each (4 shown)
  • laptop shelves - $120 each (0 shown)
  • vertical truss mount small LCD mounts - $150 each (0 shown)
  • hanging plasma mount - $350 each (0 shown)
  • Freestanding counter - $900 each (1 shown)

Standard graphic sizes:

  • Backwall Mural: 93.5” x 70” high fabric with sintra strips top and bottom front.
  • Arc header: 100” x 11.5” panel size, lexan with magnet on reverse perimeter.
  • Small logo panels: (2) 11.5” x 11.5” panel size, lexan with magnet on reverse perimeter.
  • Optional Counter Front: 33” x 37” panel size, lexan with hook velcro on reverse perimeter.

Onyx

Large backwall mural, serpentine header and full backwall counter, this is a great 10 x 10!

Onyx retail price:

  • truss with 1 tub - $6,380
  • est. weight 480 pounds

Accessories

  • 200 watt halogen clamp-on lights - $138 each (4 included)
  • literature shelves - $35 each (4 shown)
  • laptop shelves - $120 each (0 shown)
  • vertical truss mount small LCD mounts - $150 each (0 shown)
  • hanging plasma mount - $350 each (0 shown)
  • Freestanding counter - $900 each (1 shown)

Standard graphic sizes:

  • Backwall Mural: 93.5” x 43” high fabric with sintra strip top and hook velcro bottom on front, 92” x 40” viewable.
  • Sidewall Murals: (2) 36” x 70” high fabric with sintra strips top and bottom front.
  • Serpentine header: 111.5” x 11.5” panel size, lexan with magnet on reverse perimeter.
  • Small logo panel: 11.5” x 11.5” panel size, lexan with magnet on reverse perimeter.
  • Return header panel:34.5” x 11.5” panel size, lexan with magnet on reverse perimeter.
  • Optional Counter Front: 33” x 37” panel size, lexan with hook velcro on reverse perimeter.

Truss color (Silver, Black, White, Red, Gray or Blue)

Metal Shelf color (Silver, Black, White, Red, Gray or Blue)

Laminate color for counter tops

(Black, White, Grey Nebula or Woodgrain)

For Velcro fabric on counter bases and non velcro fabric for tubes,

see color chart here.







EZ12 Installation Instructions:

Below, you will find some generic assembly instructions on how to assemble various accessories and how to assemble EZ12 parts together.

Also, all of our standard kits have instructions which are accessible from the kit page or below. Click a kit for the color-coded exploded view.



Download EZ12 Connection Brackets:

Download Freestanding Locking Counter:

Download Fabric Panel / Graphic Installation:

Download Large Flat Screen mount:

Download Small Flat Screen mount:

Download EZ12 Arc Header:



Download Setup Instructions:
