10x10's - EZ6 tool-less truss complete display system (KITS)

Pre-designed kit concepts. Use these kits as is, add some accessories, reconfigure them or start from scratch. With EZ6, it’s entirely up to you..

Pasadena

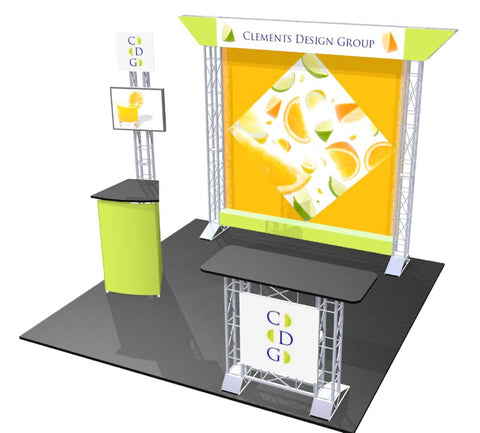

Simple and Elegant, the Pasadena uses the 612 beam and soffet lighting for a uniquely clean look.

Pasadena retail price:

  • truss with 2 cases
  • est. weight 240 pounds

Accessories:

  • 60 watt soffett lights -  (3 included)
  • literature shelves - (0 shown)
  • laptop shelves - (0 shown)
  • vertical truss mount small LCD mounts - (1 shown)
  • hanging plasma mount - (0 shown)
  • workstation - (1 shown)
  • designer counter - (1shown)

Standard graphic sizes:

  • Panel A: 115” x 11.5” panel size, chisel point ends.
  • Panel B: 82” x 75.75” panel size, 80.5” x 74.25” viewable graphic size.
  • Panel C: 80.5” x 11.5” panel size, 80.5” x 11.5” viewable graphic size.
  • Standard graphic sizes on optional accessories:
  • Panel D: 14” x 14” panel size, 14” x 14” viewable graphic size.
  • Panel E: 21” x 38” panel size, 21” x 38” viewable graphic size.
  • Panel F: 24.5” x 24” panel size, 24.5” x 24” viewable graphic size.

Hercules

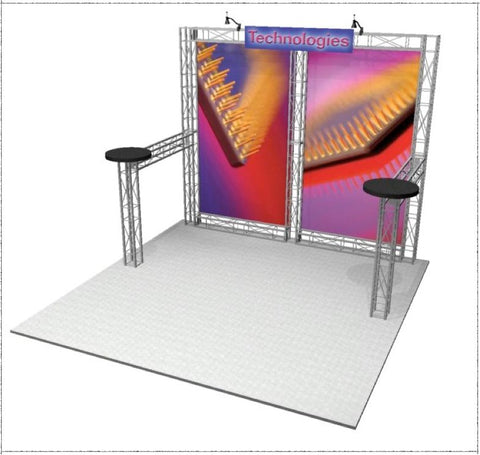

Simple and Elegant, the Hercules is a simple straight backwall with 18” diameter tops on 4’ returns.

Hercules retail price:

  • truss with 2 cases
  • est. weight 240 pounds

Accessories:

  • 75 watt halogen clamp-on lights - (2 included)
  • literature shelves -  (0 shown)
  • laptop shelves - (0 shown)
  • vertical truss mount small LCD mounts - (0 shown)
  • hanging plasma mount - (0 shown)
  • Freestanding counter - (0 shown)
  • 46” wide flat aluminum shelf - (0 shown)
  • 46” wide slant aluminum shelf - (0 shown)
  • 46” wide flat laminate shelf - 0 shown)
  • 46” wide merchandising bar - (0 shown)

Standard graphic sizes:

  • Panel A: 47.5” x 81.5” panel size, 46” x 80” viewable graphic size.
  • Panel B: 47.5” x 81.5” panel size, 46” x 80” viewable graphic size.
  • Header Graphic: 46” x 9” high lexan with horizontal  magnet on back,
  • 5” apart vertically.

Aptos

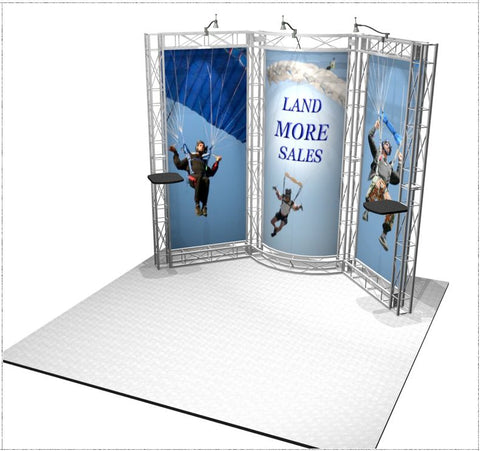

A very popular display, the Aptos features a curved center and flat 34.5” wide side panels.

Aptos retlai price:

  • truss with 2 cases
  • est. weight 240 pounds

Accessories:

  • 75 watt halogen clamp-on lights -  (3 included)
  • literature shelves -  (0 shown)
  • laptop shelves -  (2 shown)
  • vertical truss mount small LCD mounts - (0 shown)
  • hanging plasma mount - (0 shown)
  • Freestanding counter - (0 shown)
  • 34.5” wide flat aluminum shelf - (0 shown)
  • 34.5” wide slant aluminum shelf - (0 shown)
  • 34.5” wide flat laminate shelf - (0 shown)
  • 34.5” wide merchandising bar - (0 shown)

Standard graphic sizes:

  • Panel A: 36” x 81.5” panel size, 34.5” x 80” viewable graphic size.
  • Panel B: 37.5” x 81.5” panel size, 36” x 80” viewable graphic size.
  • Panel C: 36” x 81.5” panel size, 34.5” x 80” viewable graphic size.

Sausalito

A very popular display, the Sausalito features opposite curved ends and a flat 34.5” wide center panel.

Sausalito retail price:

  • truss with 2 cases
  • est. weight 240 pounds

Accessories

  • 75 watt halogen clamp-on lights - (3 included)
  • literature shelves - (0 shown)
  • laptop shelves - (1 shown)
  • vertical truss mount small LCD mounts - (0 shown)
  • hanging plasma mount - (0 shown)
  • Freestanding counter - (0 shown)
  • 34.5” wide flat aluminum shelf - (0 shown)
  • 34.5” wide slant aluminum shelf - (0 shown)
  • 34.5” wide flat laminate shelf - (0 shown)
  • 34.5” wide merchandising bar - (0 shown)

Standard graphic sizes:

  • Panel A: 46.75” x 81.5” panel size, 45.25” x 80” viewable graphic size.
  • Panel B: 36” x 81.5” panel size, 34.5” x 80” viewable graphic size.
  • Panel C: 37.5” x 81.5” panel size, 36” x 80” viewable graphic size.

Bodega

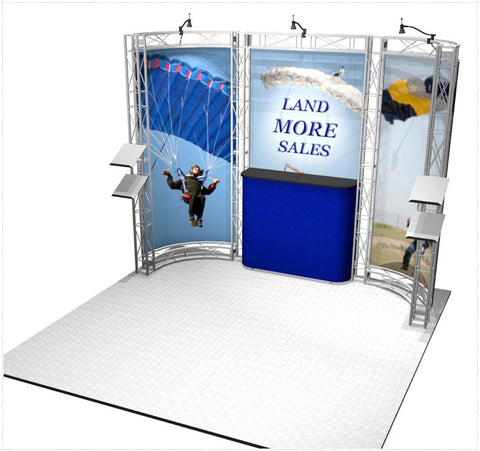

 A very popular display, the Bodega features curved ends and a flat 46” wide center panel.

Bodega retail price:

  • truss with 2 cases
  • est. weight 240 pounds

Accessories

  • 75 watt halogen clamp-on lights - (3 included)
  • literature shelves - (4 shown)
  • laptop shelves - (0 shown)
  • vertical truss mount small LCD mounts - (0 shown)
  • hanging plasma mount - (0 shown)
  • Freestanding counter - (1 shown)
  • 46” wide flat aluminum shelf -  (0 shown)
  • 46” wide slant aluminum shelf -  (0 shown)
  • 46” wide flat laminate shelf -  (0 shown)
  • 46” wide merchandising bar - (0 shown)

Standard graphic sizes:

  • Panel A: 46.75” x 81.5” panel size, 45.25” x 80” viewable graphic size.
  • Panel B: 47.5” x 81.5” panel size, 46” x 80” viewable graphic size.
  • Panel C: 46.75” x 81.5” panel size, 45.25” x 80” viewable graphic size.

Eastridge

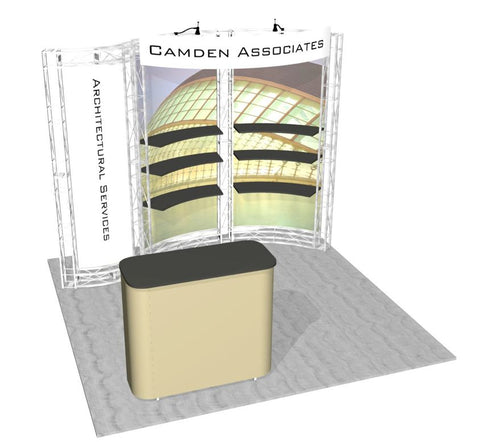

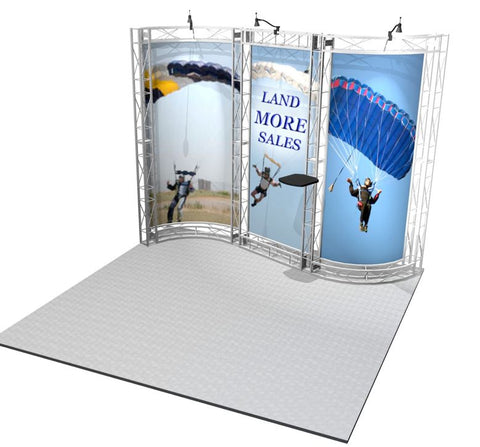

A very popular display, the Eastridge features an “S” shape with a reversed arc header.

Eastridge retail price:

  • truss with 2 cases
  • est. weight 240 pounds

Accessories

  • 75 watt halogen clamp-on lights -  (3 included)
  • literature shelves - (0 shown)
  • laptop shelves -  (0 shown)
  • vertical truss mount small LCD mounts -  (0 shown)
  • hanging plasma mount - (0 shown)
  • Freestanding counter - (1 shown)
  • R5 inside radius flat laminate shelf - (6 shown)

Standard graphic sizes:

  • Panel A: 25.5” x 81.5” panel size, 24” x 80” viewable graphic size.
  • Panel B: 42” x 81.5” panel size, 40.5” x 80” viewable graphic size.
  • Panel C: 42” x 81.5” panel size, 40.5” x 80” viewable graphic size.
  • Header: 76.5” x 11.5” high lexan graphic with magnetic tape on back.

Belmont

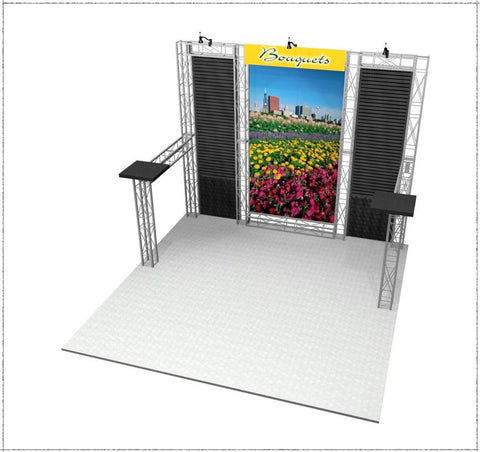

Great merchandising 10 x 10, the Belmont has a large focus graphic with slatwall on both sides. Stability is provided by 4’ returns  with 18” square toppers..

Belmont retail price:

  • truss with 3 cases
  • est. weight 320 pounds

Accessories:

  • 75 watt halogen clamp-on lights - (3 included)
  • literature shelves -  (0 shown)
  • laptop shelves -  (0 shown)
  • vertical truss mount small LCD mounts -  (0 shown)
  • hanging plasma mount - (0 shown)
  • Freestanding counter - (0 shown)
  • 46” wide flat aluminum shelf - (0 shown)
  • 46” wide slant aluminum shelf - (0 shown)
  • 46” wide flat laminate shelf - (0 shown)
  • 46” wide merchandising bar - (0 shown)

Standard graphic sizes:

  • Panel A: 24.5” x 81.5” panel size, 23” x 80” viewable graphic size, if not using slatwall.
  • Panel B: 47.5” x 81.5” panel size, 46” x 80” viewable graphic size.
  • Panel A: 24.5” x 81.5” panel size, 23” x 80” viewable graphic size, if not using slatwall.
  • Header Graphic: 47.5” x 9” high lexan with horizontal  magnet on back,  5” apart vertically.
  • Irvine

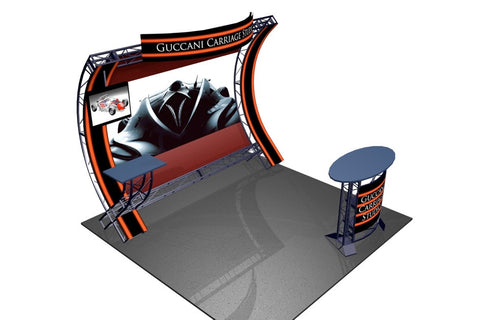

Unique, the Irvine uses curved 612 beams vertically to create an arced ribbed backwall.

Irvine retail price:

  • truss with 3 cases
  • est. weight 330 pounds

Accessories

  • 60 watt soffet strip lights - (3 included)
  • hanging LCD mounts -  (1 shown)
  • hanging plasma mount -  (0 shown)
  • Oval designer counter - (1 shown)

Standard graphic sizes:

  • Panel A: 76.5” x 11.5” panel size, 76.5” x 11.5” viewable graphic size.
  • Panel B - main: 78” x 11.5” panel size, 78” x 11.5” viewable graphic size.
  • Panel B - bottom: 11.5” x 11.5” panel size, 11.5” x 11.5” viewable graphic size.
  • Panel C:  93.5” x 82.75” panel size, 92” x 81.25” viewable graphic size.
  • Panel D:  95.25” x 11.5” panel size, 95.25” x 11.5” viewable graphic size.

Optional Counter

  • Panel E: 24” x24” panel size, 24” x 24” viewable graphic size

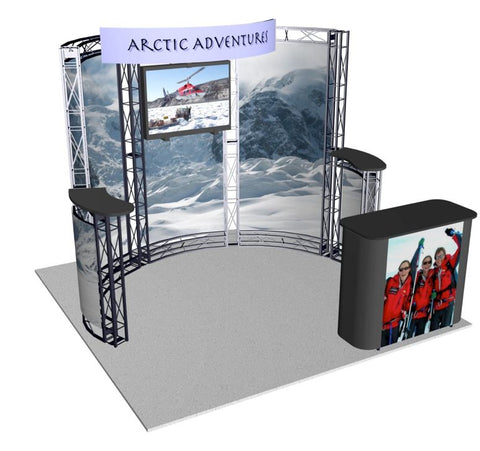

Tahoe

A very popular display, the Tahoe is a 215° arc with small side counter tops and a reversed arc header.

Tahoe retail price:

  • truss with 3 cases
  • est. weight 360 pounds

Accessories

  • 75 watt halogen clamp-on lights - (3 included)
  • literature shelves - (0 shown)
  • laptop shelves - (0 shown)
  • vertical truss mount small LCD mounts - (0 shown)
  • hanging plasma mount - (1 shown)
  • Freestanding counter - (1 shown)
  • R5 inside radius flat laminate shelf - (0 shown)

Standard graphic sizes:

  • Panel A: 24” x 35.5” panel size, 22.5” x 34” viewable graphic size.
  • Panel B: 42” x 81.5” panel size, 40.5” x 80” viewable graphic size.
  • Panel C: 42” x 81.5” panel size, 40.5” x 80” viewable graphic size.
  • Panel D: 42” x 81.5” panel size, 40.5” x 80” viewable graphic size.
  • Panel E: 24” x 35.5” panel size, 22.5” x 34” viewable graphic size.
  • Panel F: 76.5” x 11.5” high lexan graphic with magnetic tape on back.

Truss color (Silver, Black, White, Red, Gray or Blue)

Laminate color ( if ordering laptop shelves, laminate shelves, or a counter)

(Black, Grey Nebula or Woodgrain)

Metal Shelf color (Silver, Black, White, Red, Gray or Blue)

Slatwall color (Wrinkle black, Silver, Black, White, Red, Gray or Blue)

Fabric color (velcro compatible fabric used in slatwall base panel or counter base)

(Blue, Silver, Black , Other)

Pricing includes truss system, lights, cases and slatwall on the Belmont. Also included are truss top counters on Hercules, Belmont and Tahoe.

Pricing does not include graphics, freestanding or backwall counters, A/V mounts, laptop shelves, literature shelves or product shelves.
