10x20s - EZ12 tool-less collapsible truss display system (KITS)

Pre-designed kit concepts. Use these kits as is, add some accessories, reconfigure them or start from scratch. With EZ12, it’s entirely up to you..

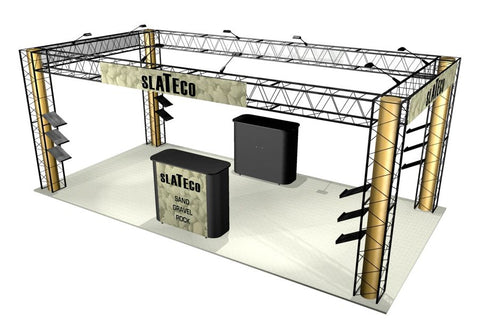

Slate 8

Slate retail prices:

  • Slate 8 - 92” hi 19’2” x 9’7” truss with 1 tub - $6,710
  • Slate 10 - 115” hi 19’2” x 9’7” truss with 1 tub - $7,210
  • Slate 12 - 138” hi 19’2” x 9’7” truss with 1 tub and 1 case - $7,700

est. weight

  • Slate 8   - 430 pounds
  • Slate 10 - 500 pounds
  • Slate 12 - 560 pounds

Accessories

  • 200 watt halogen clamp-on lights - $138 each (8 included)
  • literature shelves - $35 each (12 shown)
  • laptop shelves - $120 each (0 shown)
  • vertical truss mount small LCD mounts - $150 each (0 shown)
  • hanging plasma mount - $350 each (0 shown)
  • Freestanding counter - $900 each (2 shown)

Laminate color for counter tops

  • (Black, White, Grey Nebula or Woodgrain)

Standard graphic sizes:

  • Straight headers: (4) 93.5” x 11.5” panel size, lexan with magnet on reverse perimeter.
  • Optional Counter Fronts: (2) 33” x 37” panel size, lexan with hook velcro on reverse perimeter.



Flint

This 10 x 20 inline display supports large murals, and has an overhead header for ID.

Flint retail price:

  • Truss with 1 tub - $6,771
  • est. weight - 500 pounds

Accessories

  • 200 watt halogen clamp-on lights - $138 each (6 included)
  • literature shelves - $35 each (8 shown)
  • laptop shelves - $120 each (0 shown)
  • vertical truss mount small LCD mounts - $150 each (0 shown)
  • hanging plasma mount - $350 each (0 shown)
  • Freestanding counter - $900 each (1 shown)

Standard graphic sizes:

  • Backwall Murals: (2) 93.5” x 70” high fabric with sintra strips top and bottom front.
  • Sidewall Murals: (2) 36” x 70” high fabric with sintra strips top and bottom front.
  • Straight header: 93.5” x 11.5” panel size, lexan with magnet on reverse perimeter.
  • Optional Counter Front: 33” x 37” panel size, lexan with hook velcro on reverse perimeter.

Krypton

This unusual 10 x 20 island display does a great job displaying large items and supporting a rigid graphic.

Krypton retail price:

  • Truss with 1 tub - $7,278
  • est. weight  - 330 pounds

Accessories

  • 50 watt halogen clamp-on lights - $70 each (4 included)
  • literature shelves - $35 each (6 shown)
  • laptop shelves - $120 each (0 shown)
  • vertical truss mount small LCD mounts - $150 each (0 shown)
  • hanging plasma mount - $350 each (0 shown)
  • Freestanding counter - $900 each (0 shown)

Standard graphic sizes:

There are no standard sizes for this display. Typical use is a rigid sign mounted to the face of the truss at the top of the arch or hanging from it.

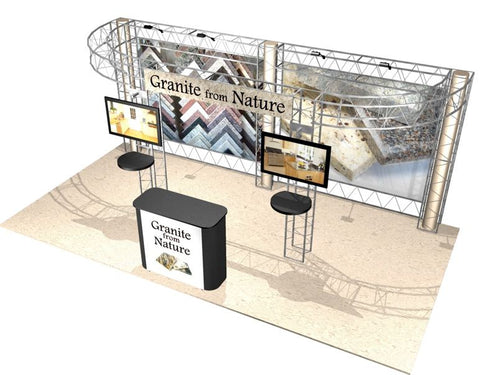

Granite

This 10 x 20 inline display supports large murals, has sweet curves and an overhead header for ID.

Granite retail price:

  • Truss with 1 tub - $8,038
  • est. weight - 500 pounds

Accessories

  • 200 watt halogen clamp-on lights - $138 each (4 included)
  • literature shelves - $35 each (8 shown)
  • laptop shelves - $120 each (0 shown)
  • vertical truss mount small LCD mounts - $150 each (0 shown)
  • hanging plasma mount - $350 each (0 shown)
  • Freestanding counter - $900 each (1 shown)

Standard graphic sizes:

  • Backwall Murals: (2) 93.5” x 70” high fabric with sintra strips top and bottom front.
  • Straight header: 82” x 11.5” panel size, lexan with magnet on reverse perimeter.
  • Optional Counter Front: 33” x 37” panel size, lexan with hook velcro on reverse perimeter.

Topaz

This 10 x 20 inline display has full backwall counters and an adjustable height center section.

* when center is at full height, this kit may only be used as a perimeter inline without special show management approval at most shows..

Topaz retail price:

  • Truss with 1 tub & 2 cases - $10,223
  • est. weight - 800 pounds

Accessories

  • 200 watt halogen clamp-on lights - $138 each (6 included)
  • literature shelves - $35 each (6 shown)
  • laptop shelves - $120 each (0 shown)
  • vertical truss mount small LCD mounts - $150 each (0 shown)
  • hanging plasma mount - $350 each (0 shown)
  • Freestanding counter - $900 each (1 shown)

Standard graphic sizes:

Center Mural:

  • when used full height - (1) 93.5” x 89” high fabric with sintra strip top and hook velcro bottom on front, 92” x 86” viewable.
  • when center is at 8’ - (1) 93.5” x 43” high fabric with sintra strip top and hook velcro bottom on front, 92” x 40” viewable.

Above counter left and right - (2) 47.5” x 43” high fabric with sintra strip top and hook velcro bottom on front, 46” x 40” viewable.

Sidewall Murals: (2) 36” x 70” high fabric with sintra strips top and bottom front.

Center Arc header: (1) 100” x 11.5” panel size, lexan with magnet on reverse perimeter.

Small front logo panels: (2) 11.5” x 11.5” panel size, lexan with magnet on reverse perimeter.

Side & backwall truss graphics: (2) 46” x 11.5” panel size, lexan with magnet on reverse perimeter.

Optional Counter Front: (1) 33” x 37” panel size, lexan with hook velcro on reverse perimeter.

Jade

This 10 x 20 inline display has full backwall counters and serpentine headers.

Jade retail price:

  • Truss with 1 tub - $11,088
  • est. weight - 700 pounds

Accessories

  • 200 watt halogen clamp-on lights - $138 each (8 included)
  • literature shelves - $35 each (4 shown)
  • laptop shelves - $120 each (0 shown)
  • vertical truss mount small LCD mounts - $150 each (0 shown)
  • hanging plasma mount - $350 each (0 shown)
  • Freestanding counter - $900 each (2 shown)

Standard graphic sizes:

  • Backwall Murals:  (2) 93.5” x 43” high fabric with sintra strip top and hook velcro bottom on front, 92” x 40” viewable.
  • Sidewall Murals: (2) 36” x 70” high fabric with sintra strips top and bottom front.
  • Serpentine headers: (2) 111.5” x 11.5” panel size, lexan with magnet on reverse perimeter.
  • Small logo panels: (3) 11.5” x 11.5” panel size, lexan with magnet on reverse perimeter.
  • Optional Counter Fronts: (2) 33” x 37” panel size, lexan with hook velcro on reverse perimeter.

Truss color (Silver, Black, White, Red, Gray or Blue)

Metal Shelf color (Silver, Black, White, Red, Gray or Blue)

For Velcro fabric on counter bases and non velcro fabric for tubes,

see color chart here.

Laminate color for counter tops

(Black, White, Grey Nebula or Woodgrain)



Download Setup Instructions:

Download EZ12 Connection Brackets:

Download Freestanding Locking Counter:

Download Fabric Panel / Graphic Installation:

Download Large Flat Screen mount:

Download Small Flat Screen mount:

Download EZ12 Arc Header:
