Formulate Arch Tension Fabric Structure

Formulate® Arches add architecture and design to any event or interior space. Easily create and define a stunning entryway, focal point or stage set at your next tradeshow or event. Arches feature pillowcase fabric graphics with curved aluminum tube frames, and collapse to a fraction of their size for ease of shipping and storage.

Additional Information:

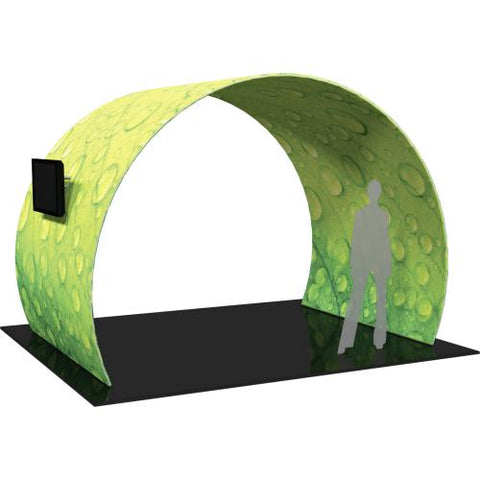

Formulate 12ft Arch 01 Tension

- State-of-the-art 50mm curved aluminum tube frame with expanding spigots
- Two monitor mounts included, externally facing, adding a bonus opportunity to display messaging and branding
- Easy to store and ship
- Quick to set up
- Lifetime hardware warranty against manufacturer defects
- Kit includes: one frame, one dye-sublimated zipper pillowcase graphic , two monitor mounts (monitors not included) and one wheeled molded OCL and OCH2 storage cases
- Height of monitor mount placement: 64.1875"H

  • Assembled Dimensions: 136.56"W x 95.31"H x 92"D
  • Display Size: 20' Inline
  • Hardware Only Weight: 116.5 lbs
  • Shipping Dimensions:  1 x OCE (18"L x 40" - 66"H x 18"D) 1 x OCH2 (52"L x 29"H x 15"D)

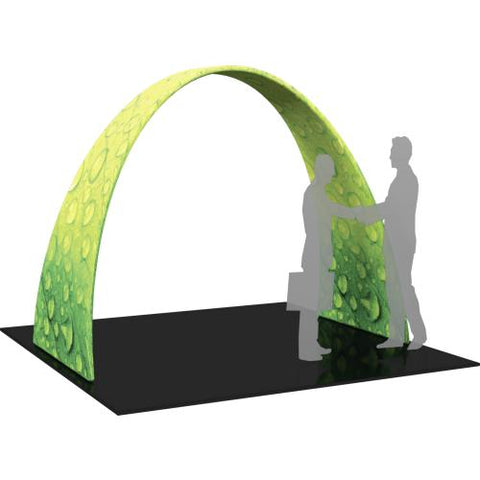

Formulate 10ft Arch 02 Tension

  • Assembled Dimensions: 114"W x 91.83"H x 58"D
  • Display Size: 10' Inline
  • Hardware Only Weight: 24.07 lbs
  • Shipping Dimensions: 1 x OCE (18"L x 40" - 66"H x 18"D)

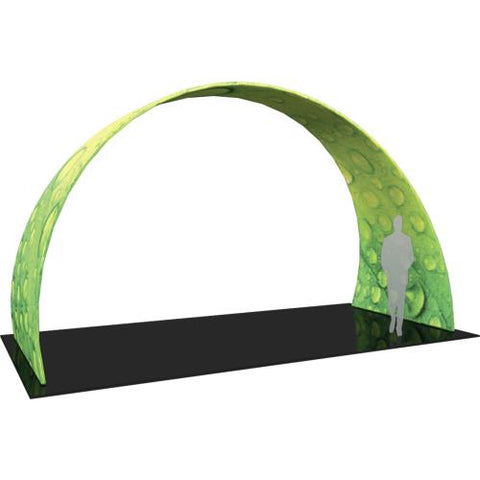

Formulate 20ft Arch 03 Tension

  • Fits perfectly in 20ft by 20ft island space
  • Shown in a 20’ space
  • Assembled Dimensions: 229.58"W x 136"H x 96"D
  • Display Size: 20' Inline
  • Hardware Only Weight: 88.12 lbs
  • Shipping Dimensions: 2 x OCE (18"L x 40" - 66"H x 18"D)

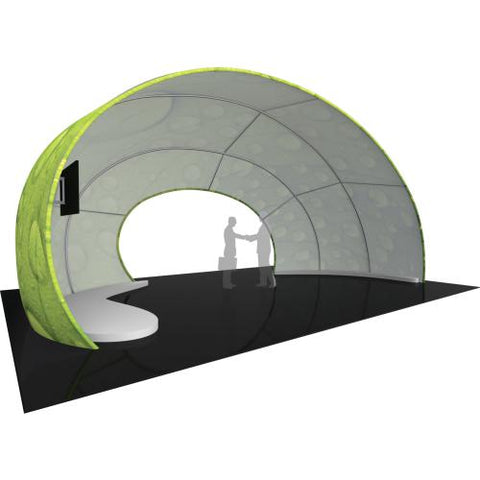

Formulate® Arch 04 combines pillowcase style stretch fabric graphics with a curved aluminum tube frame. This super structure is made in the USA and collapses to a fraction of its size. The The Formulate Arch 04 is over 13ft tall, spans 29ft wide and is 13 1/2ft deep at the bases. Two laminate platforms anchor the arch providing extra stability. Two interior monitor mounts provide the additional space for digital messaging. The half-shell shape provides a unique style element, and plentiful space for branding.

  • Assembled Dimensions: 348"W x 156"H
  • Display Size: 30' Inline
  • Shipping Dimensions: 1 x WOODCRATE-H (101"L x 53"H x 49"D)

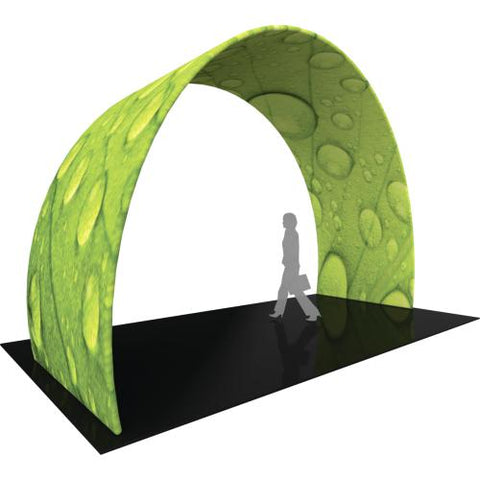

Formulate® Arch 05 combines pillowcase style stretch fabric graphics with a curved aluminum tube frame. This super structure is made in the USA and collapses to a fraction of its size. The Twisted Formulate Arch 05 is 12ft tall, spans 19 1.2ft wide and is 10ft deep at the bases. The twisted shape provides a unique style element, and plentiful space for branding and messaging.

  • Assembled Dimensions: 234"W x 144"H
  • Display Size: 20' Inline
  • Shipping Dimensions: 1 x WOODCRATE-H (101"L x 53"H x 49"D)

Download Setup Instructions:

Download Graphic Templates:

 Video Setup Instructions:
